Description

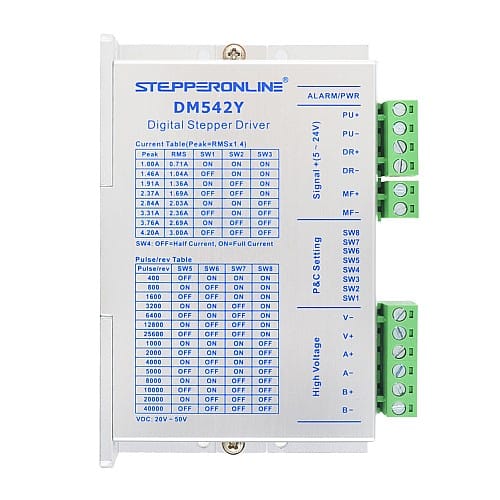

The Y Series Stepper Driver offers versatile digital control for NEMA 17, 23, and 24 stepper motors. With a current range of 1.0 to 4.2 amps and operating voltage between 20 and 50 volts DC, this driver delivers precise, reliable performance for CNC machines, 3D printers, and robotic applications.

Designed for easy integration, the Y Series Stepper Driver supports microstepping and features protection against overcurrent and overheating, ensuring stable operation in demanding environments.

Combine this driver with compatible stepper motors to build a robust motion control system.

Key Features:

• A new generation of 32-bit DSP control technology, cost-effective, stable and excellent vibration performance
• With 16 equal angle constant torque subdivision, up to 200 subdivisions
• The current control is smooth, precise, and the motor heat is small
• The highest impulse response frequency is up to 200KHz
• When the step pulse stops for more than 250ms, the motor current is halved.
• Excellent smoothness in low frequency subdivision
• Optically isolated differential signal input, strong anti-interference ability
• The drive current peak is adjustable below 4.2A
• Voltage input range: DC20~50V
• With over voltage, under voltage and other error protection
• Very small size, volume 118*76*33(mm), weight 0.3kg

Electrical Specifications:

• Output Peak Current: 1.0 – 4.2A(0.71~3.0RMS)
• Input Voltage: DC20V~50V
• Logic Signal Current: 7 – 15mA(Typical 10mA)
• Pulse Input Frequency: 0 – 200kHz
• Pulse Width: 2.5μS
• Isolation Resistance: 500MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉):

• Cooling: Natural Cooling or Forced cooling
• Environment: Avoid dust, oil fog and corrosive gases
• Ambient Temperature: 0 － 65℃
• Humidity: 40% － 90%RH
• Operating Temperature: 50℃ MAX
• Vibration: 10-50Hz/0.15mm
• Storage Temperature: -20 － 65℃
• Weight: Approx.300g(10.58oz)
